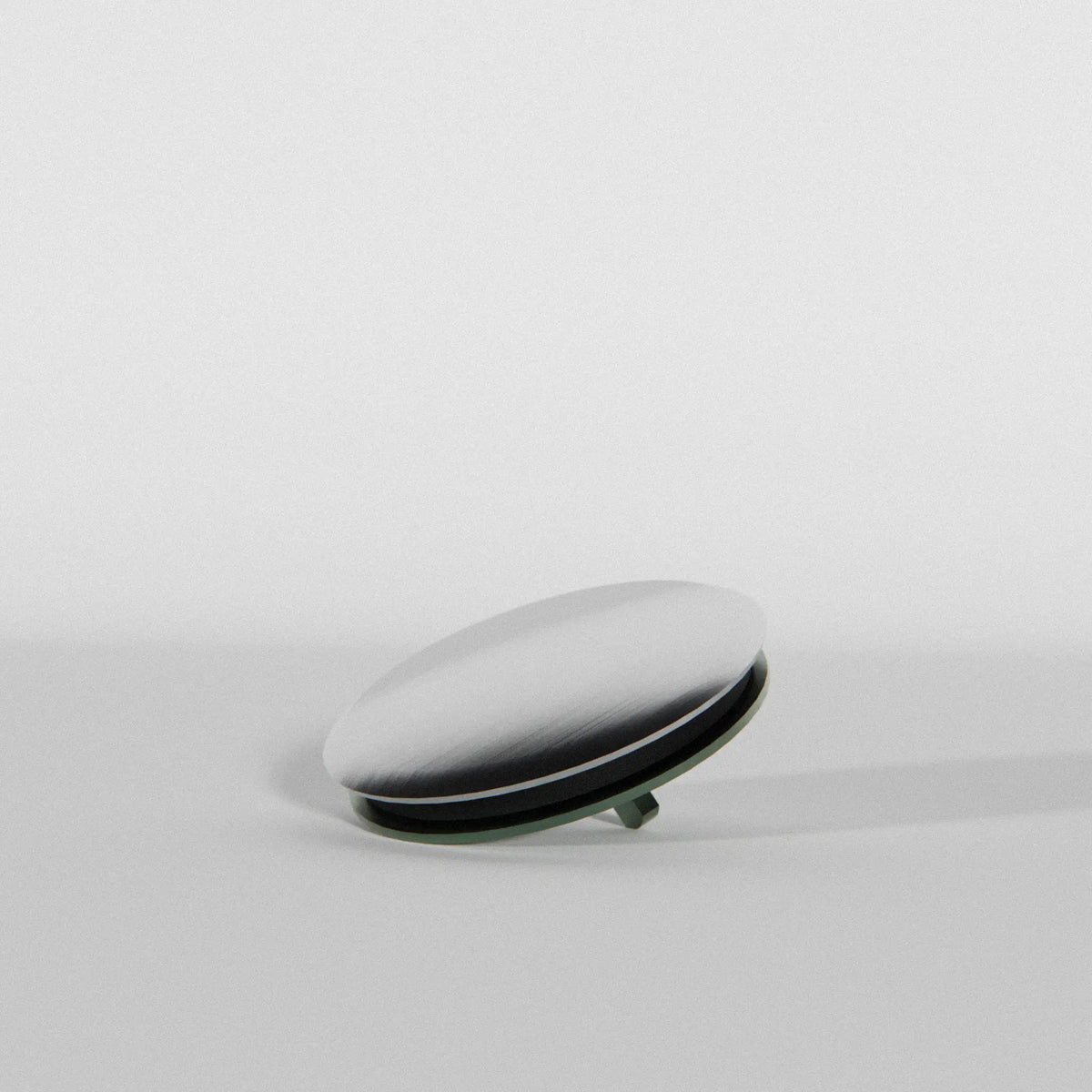

Oil Tight Hole Seal (304 Stainless Steel) - 1.5" Conduit Holes
Oil Tight Hole Seal (304 Stainless Steel) - 1.5" Conduit Holes
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Quantity
Couldn't load pickup availability
This oil-tight hole seal is designed to seal unused 1-1/2" conduit holes in Electrical Enclosures while maintaining the enclosure’s CSA/ IP rating (upto Type 4X).
With an Outer Diameter of 2.514", it can cover and seal openings up to a maximum of 2". The Stainless Steel cover is made from 304 Brushed #4 Stainless Steel for excellent corrosion resistance. The Back Plate and Wing Nut are Zinc Plated.

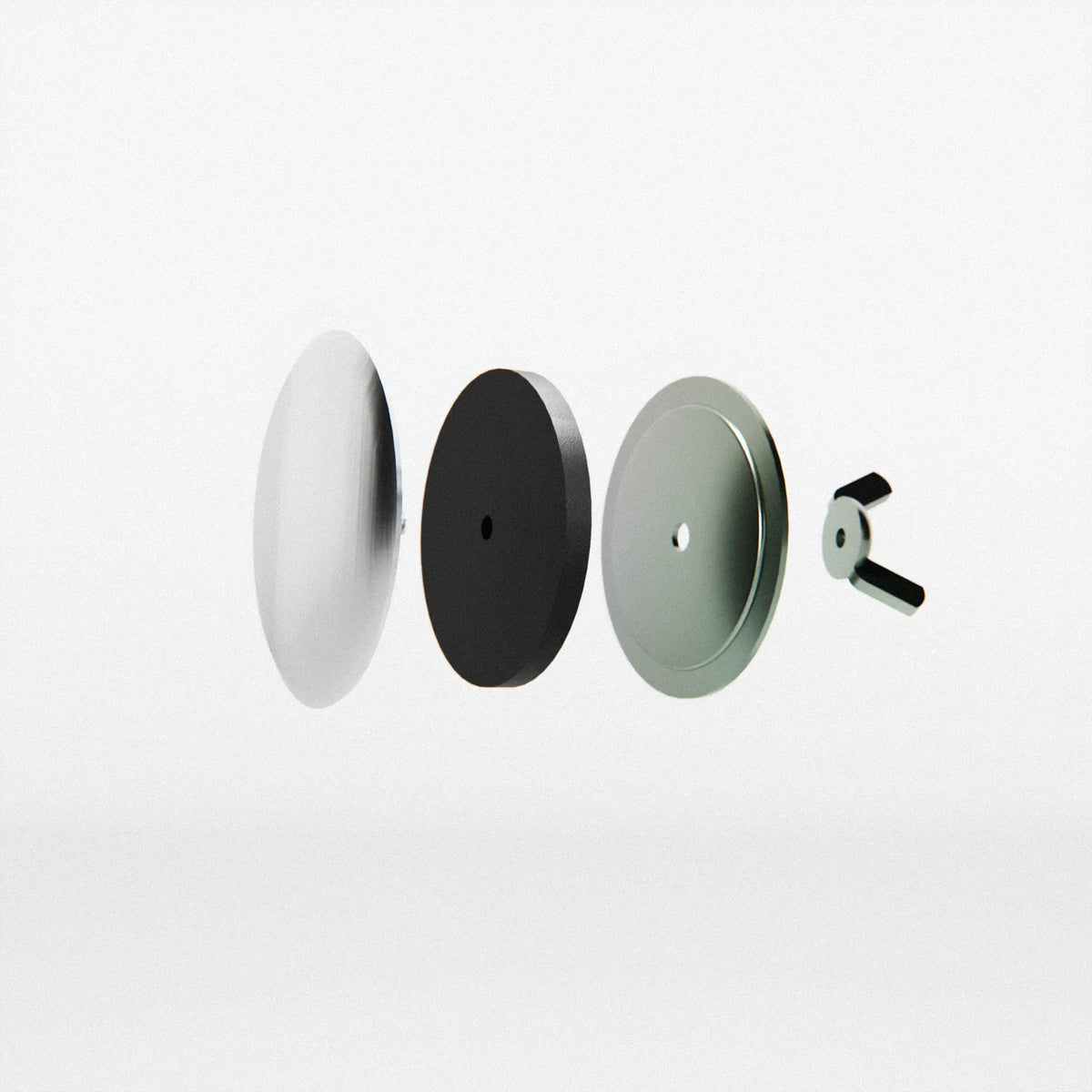

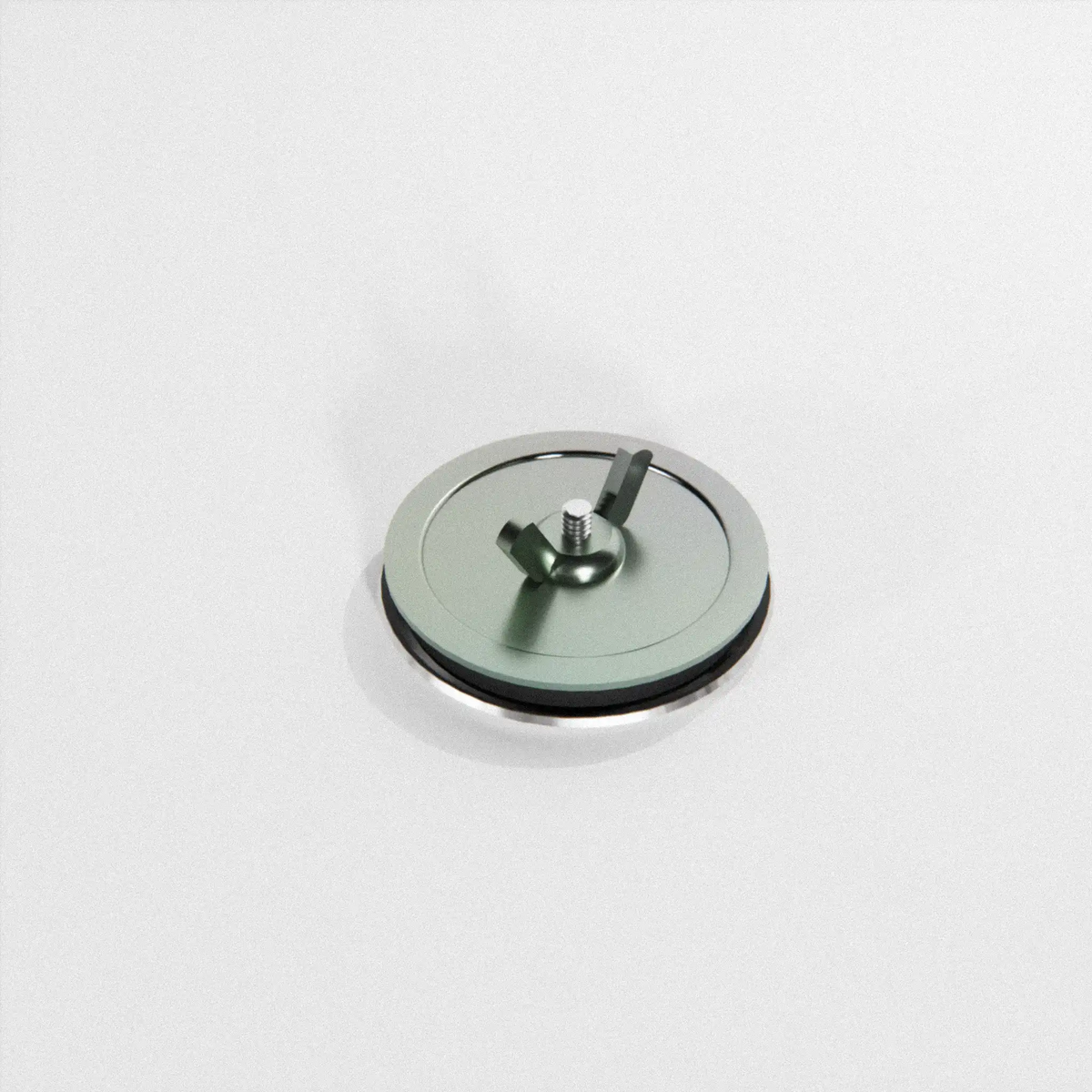

Install the cover and gasket on the outer surface of the enclosure, and use the back plate and wing nut on the inside to secure it in place. The simple, easy-to-install seal prevents liquid and dust ingress, maintaining the enclosure's rating (upto Type 4X).
| Product Identification | |
|---|---|
| Part Number | 0000-8695 |
| Physical Characteristics | |
| Cover Outside Diameter | 2.514" (63.86mm) |
| Cover Lip Angle | 30deg |
| Weld Stud Thread | 10-24 |
| Weld Stud Height | 0.57" (14.4mm) |
| Weight | 0.162lbs |
| Mounting Style | Through Hole |
| Composition | |
| Cover | 304 Stainless Steel |
| Finish | Brushed #4 |
| Weld Stud | 304 Stainless Steel |
| Back Plate | Zinc Plated Steel |
| Wing Nut | Zinc Plated Steel |
| Specifications | |
| CSA, IP and NEMA compatability | Upto NEMA 4X |
| RoHS certification | Yes |
