Oil Tight Hole Seal (316 Stainless Steel) - 2" Conduit Holes
Oil Tight Hole Seal (316 Stainless Steel) - 2" Conduit Holes
Couldn't load pickup availability
This oil-tight hole seal is designed to seal unused 2" conduit holes in Electrical Enclosures while maintaining the enclosure’s CSA/ IP rating (upto Type 4X).
With an Outer Diameter of 3", it can cover and seal openings up to a maximum of 2.5". The Stainless Steel cover is made from 316 Brushed #4 Stainless Steel for excellent corrosion resistance. The Back Plate and Wing Nut are 304 Stainless Steel.

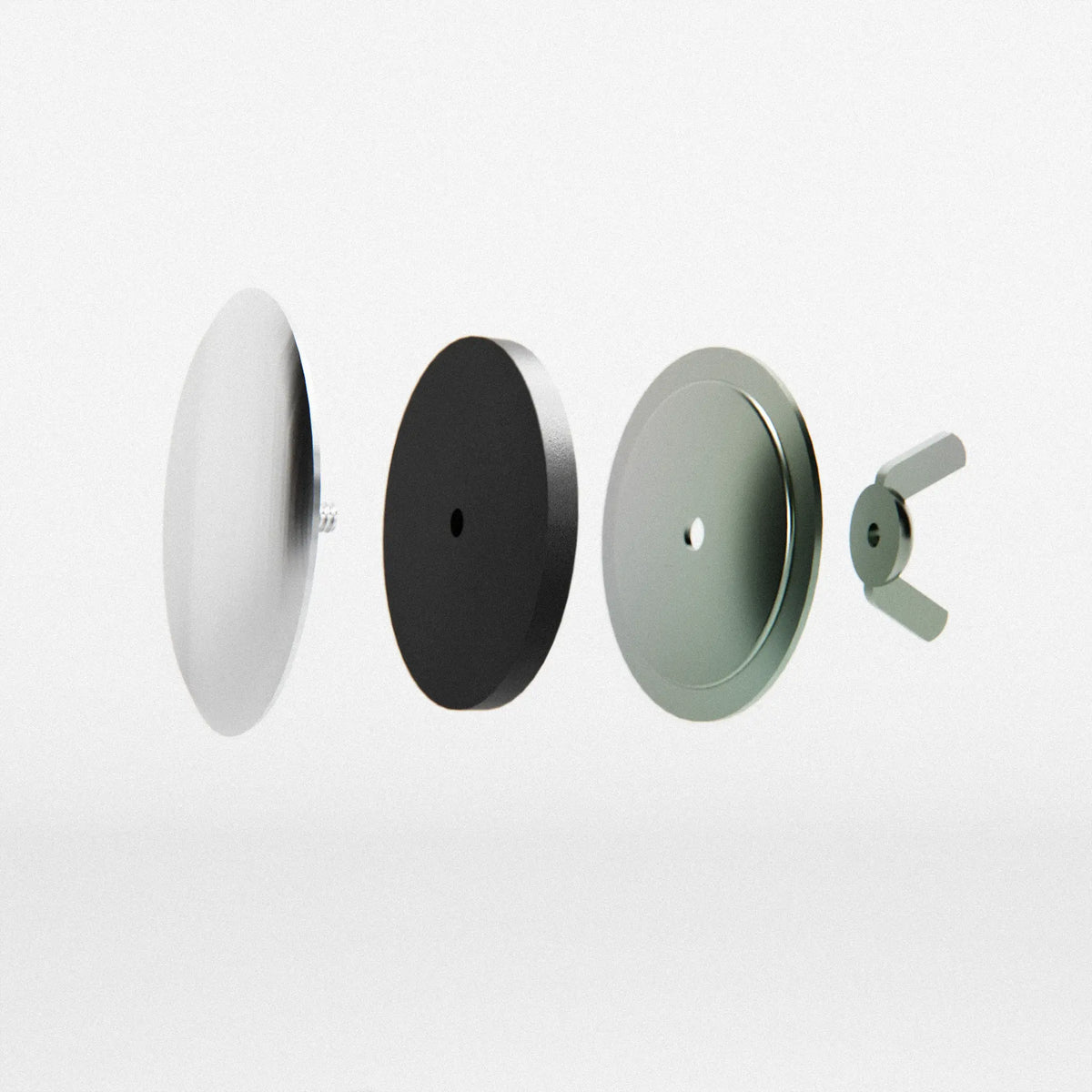

Install the cover and gasket on the outer surface of the enclosure, and use the back plate and wing nut on the inside to secure it in place. The simple, easy-to-install seal prevents liquid and dust ingress, maintaining the enclosure's rating (upto Type 4X).
| Product Identification | |
|---|---|
| Part Number | 0000-9282 |
| Physical Characteristics | |
| Cover Outside Diameter | 3.00" (76.2mm) |
| Cover Lip Angle | 30deg |
| Weld Stud Thread | 10-24 |
| Weld Stud Height | 0.57" (14.4mm) |
| Weight | 0.231lbs |
| Mounting Style | Through Hole |
| Composition | |
| Cover | 316 Stainless Steel |
| Finish | Brushed #4 |
| Weld Stud | 316 Stainless Steel |
| Back Plate | 304 Stainless Steel |
| Wing Nut | 304 Stainless Steel |
| Specifications | |
| CSA, IP and NEMA compatability | Upto NEMA 4X |
| RoHS certification | Yes |
