Concealed Stainless Steel Hinge - 120° Opening Angle
Concealed Stainless Steel Hinge - 120° Opening Angle
Regular price
$225.00 CAD
Regular price
Sale price
$225.00 CAD
Quantity
Couldn't load pickup availability
Each package has 5 hinges.

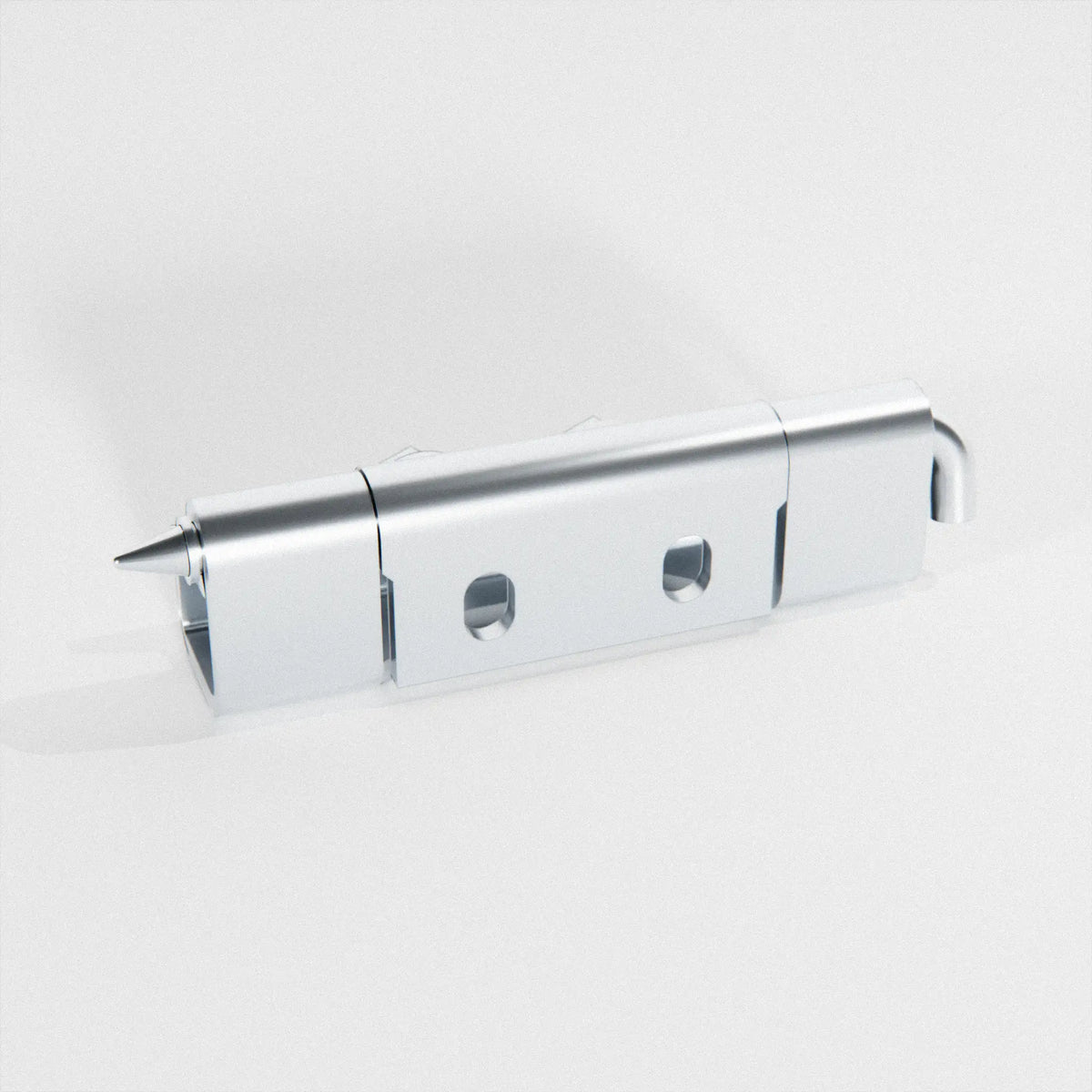

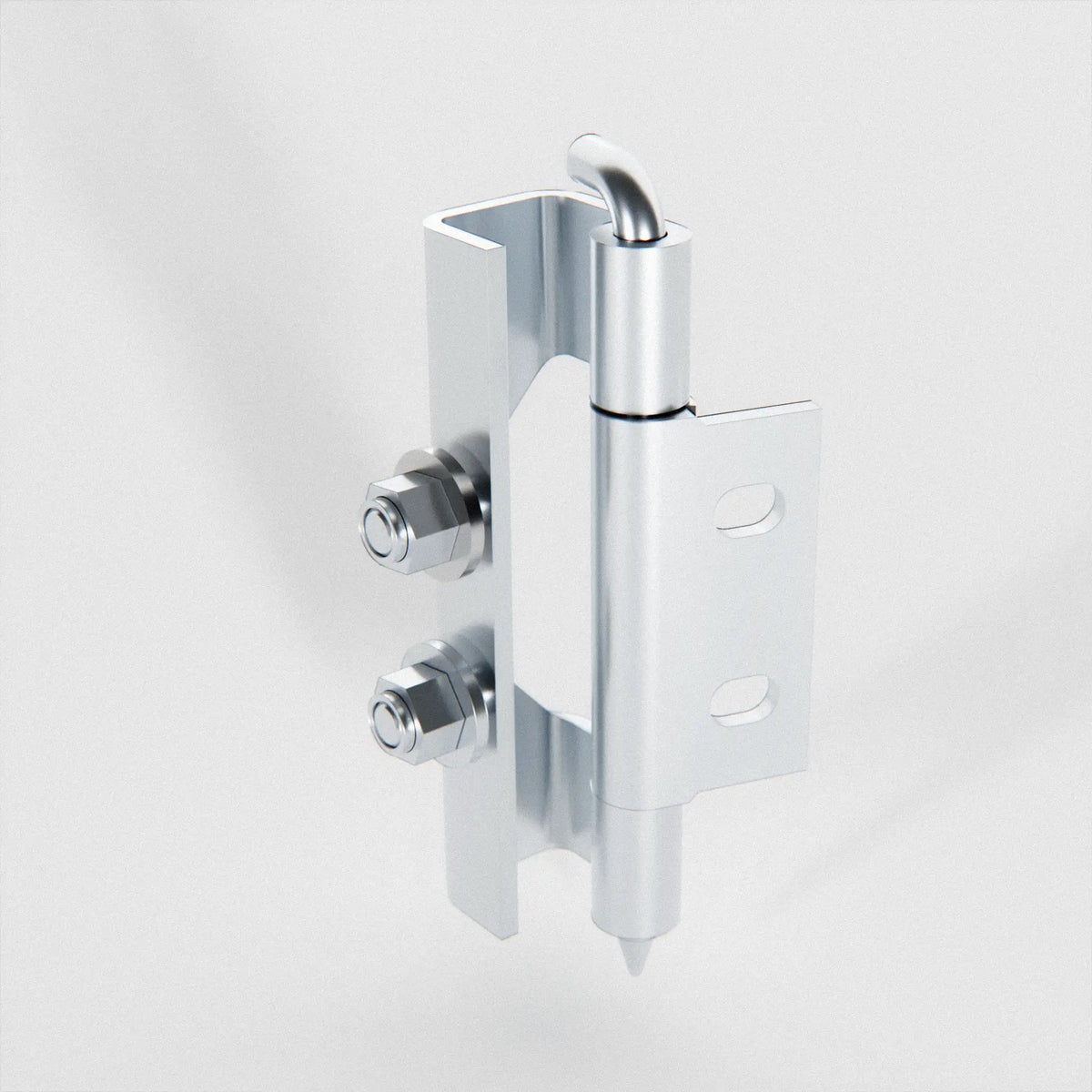

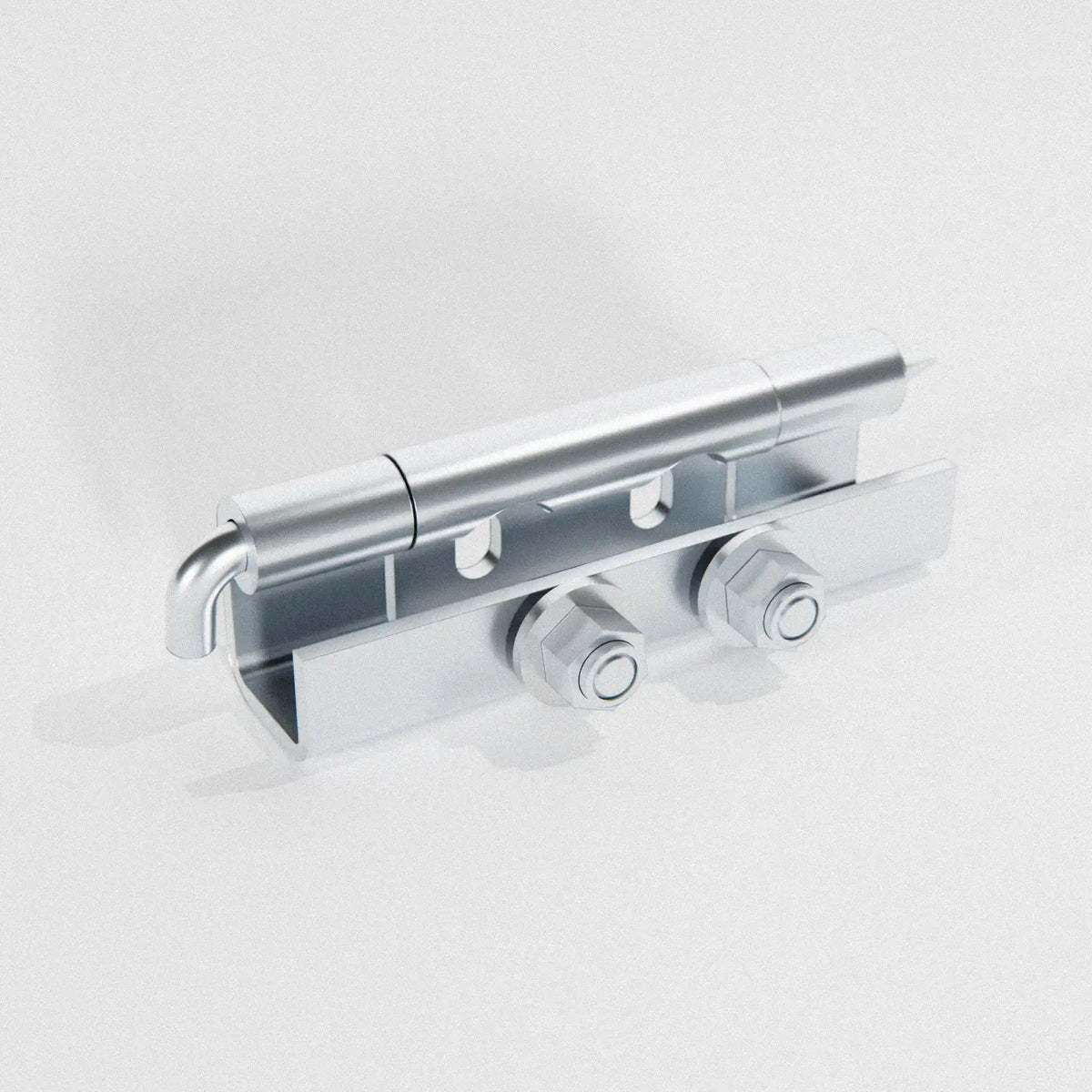

This concealed stainless steel hinge is designed for surface mounted doors to provide a smooth operation, clean finish, and a wide 120° opening angle. This can be used for right-hand and left-hand door applications.
The hinge is manufactured from 304 Stainless Steel and offer good corrosion and chemical resistance. They can either be welded-on or fastened with M6 hardware, and are completely hidden when the doors are closed.
| Product Identification | |
|---|---|
| Part Number | 0000-2900 |
| Physical Characteristics | |
| Length(including Pin) | 4.25" (108mm) |
| Opening Angle | 120° |
| Door Offset | 0.906" (23mm) |
| Door Mounting Holes Center-to-Center | 0.984" (25mm) |
| Mounting Style | Screw-on or Welded-on |
| Mounting Hardware | M6 |
| Application | Left-Hand/Right-Hand |
| Composition | |
| Cover | 304 Stainless Steel |
| Finish | Polished |
| Pin | 303 Stainless Steel |
| O-Ring | Nitrile Rubber (NBR) |
| Specifications | |
| CSA, IP and NEMA compatability | Upto NEMA 4X |
| RoHS certification | Yes |
